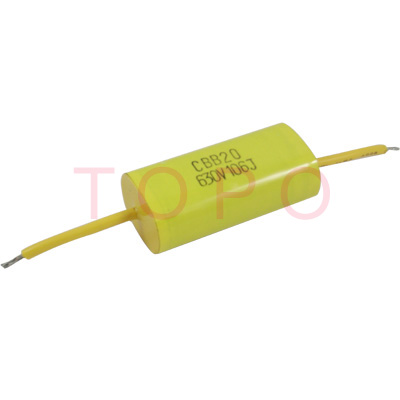

CBB20 Capacitor
Item No: TP-CBB20-3
Request A Quote Now
Featureļ¼šAxial leads, insulated, tinned copper wires gathered together by a tin cover (fray)
Product Origin: China
Supply Ability: 3,000,000pcs/month
Date
Construction
Dielectric:  polypropylene film,PP
Cylindrical winding & Cylindrical flat
Insulating sleeve
Face ends sealed with epoxy resin

Features
Good self-healing properties

Typical applications
Energy storge
Filering

Terminals
Axial leads,lead-free tinned
Axial leads, insulated, tinned copper wires gathered together by a tin cover (fray)

Climatic
Max. operating temperature: 85 Centigrade
Climatic category: 40/085/21

Delivery mode
Bulk

Technical data and specifications


Operating temperature range


Max. operating temperature Top,max 85 Centigrade
Upper category temperature Tmax 85 Centigrade
Lower category temperature Tmin 40 Centigrade
Rated capacitance CR
0.1 µF~15µF
Tolerance
J(+-5%); K(+-10%)
Rated voltage VR
250VDC~1250VDC
DC test voltage
1.4*VR, 2s
Rated frequency FR
50/60Hz
Dissipation factor tan d
<=0.002 1KHZ

Insulation resistance
CR<=0.33µF VR<=100V >=50000MΩ
VR>100V >=100000M
CR>0.33µF VR<=100V >=15000s
VR>100V >=30000s
