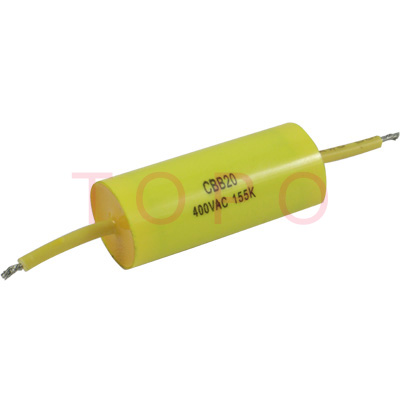

Construction
Dielectric: polypropylene film,PP
Cylindrical winding & Cylindrical flat
Insulating sleeve
Face ends sealed with epoxy resin
Features
Good self-healing properties
Typical applications
Energy storge
Filering
Terminals
Axial leads,lead-free tinned
Axial leads, insulated, tinned copper wires gathered together by a tin cover (fray)
Climatic
Max. operating temperature: 85 Centigrade
Climatic category: 40/085/21
Delivery mode
Bulk
Technical data and specifications
|
Operating temperature range
|
Max. operating temperature Top,max 85 Centigrade
Upper category temperature Tmax 85 Centigrade
Lower category temperature Tmin 40 Centigrade |
|
|
0.1 µF~15µF |
|
|
|
|
|
250VDC~1250VDC |
|
DC test voltage |
1.4*VR, 2s |
|
Rated frequency FR |
50/60Hz |
|
|
<=0.002 1KHZ |
|
Insulation resistance |
CR<=0.33µF VR<=100V >=50000MΩ
VR>100V >=100000MΩ
CR>0.33µF VR<=100V >=15000s
VR>100V >=30000s |
|
