Construction
Dielectric: polypropylene film,PP
Radial & Boxed
Wound capacitor technology
Plastic case
Epoxy resin coating
Features
Anti-Jamming
Very good self-healing properties
Smallest possible dimensions
High contact reliability
Typical applications
Compact fluorescent lamps (CFL)
SMPS
Terminals
CP Line Leads, leads-free Tinned

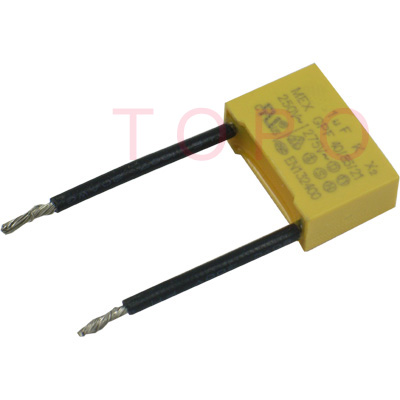

Insulation wire leads, lead-free tinned
Climatic
Max. operating temperature: 85 Centigrade
Climatic category: 40/085/21
Delivery mode
Bulk
Technical data and specifications
|
Operating temperature range
|
Max. operating temperature Top,max 85 Centigrade
Upper category temperature Tmax 85 Centigrade
Lower category temperature Tmin 40 Centigrade |
|
|
0.001 µF~4.7 µF |
|
|
|
|
|
275VAC 300VAC 450VAC |
|
DC test voltage |
4.3*VR |
|
Rated frequency FR |
50/60Hz |
|
|
J <=0.002 1KHZ K <=0.004 1KHZ |
|
Insulation resistance |
CR<=0.33µF >=15000MΩ
CR >0.33µF >=5000s |
|
