Products

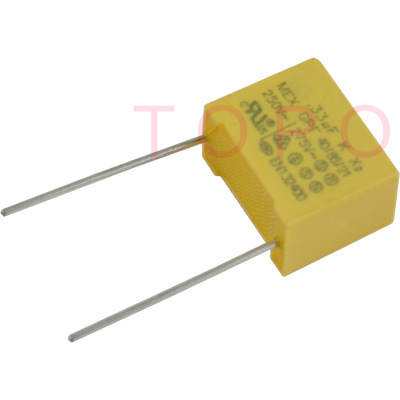

X2 Capacitor
Item No: TP-X2-1
Request A Quote Now
Featureļ¼šCP Line Leads, Lead-Free Tinned
Product Origin: China
Supply Ability: 3,000,000pcs/month
Date

Construction
Dielectric:  polypropylene film,PP
Radial & Boxed
Wound capacitor technology
Plastic case
Epoxy resin coating

Features
Anti-Jamming
Very good self-healing properties
Smallest possible dimensions
High contact reliability

Typical applications
Compact fluorescent lamps (CFL)
SMPS

Terminals
CP Line Leads, leads-free Tinned
Insulation wire leads, lead-free tinned

Climatic
Max. operating temperature: 85 Centigrade
Climatic category: 40/085/21

Delivery mode
Bulk

Technical data and specifications


Operating temperature range


Max. operating temperature Top,max 85 Centigrade
Upper category temperature Tmax 85 Centigrade
Lower category temperature Tmin 40 Centigrade
Rated capacitance CR
0.001 µF~4.7 µF
Tolerance
J(+-5%); K(+-10%)
Rated voltage VR
275VAC 300VAC 450VAC
DC test voltage
4.3*VR
Rated frequency FR
50/60Hz
Dissipation factor tan d
J <=0.002 1KHZ   K <=0.004 1KHZ

Insulation resistance
CR<=0.33µF >=15000MΩ
CR >0.33µF >=5000s
