Construction
Dielectric: polypropylene film

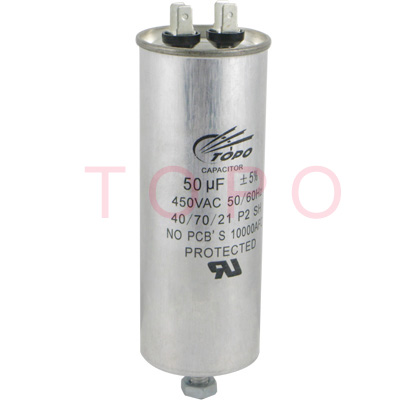

Aluminum Round & Oval can
Oil type
Features
Self-heating properties
Low dissipation factor
Explosion proof device
Highest safety level P2 safety class to IEC 60252-1
High insulation resistance
Typical applications
For general sine wave applications, mainly as motor run capacitor, air connditioner
Terminals
Fast on
Mounting parts (optional)
Threaded stud at bottom of can (M8, max.torque=5 Nm)
Technical data and specifications
|
Reference standards |
IEC 60252-1 |
|
Safety class according IEC 60252-1 |
P2 |
|
Life expectancy to IEC 60252-1 |
3,000 h( C)~10,000 h(B) |
|
Rated capacitance CR |
1 µF~120 µF |
|
Tolerance |
+/-5% |
|
Rated voltage VR |
110VAC~500VAC |
|
Rated frequency FR |
50/60Hz |
Maximum ratings
|
Maximum permissible votage Vmax |
1.1*VR (VR=Rated voltage) |
|
Maximum permissible current Imax |
1.3*IR (IR=Rated current) |
Test data
|
AC test voltage terminal to terminal VTT |
2*VR, 2s (routine test) |
|
2*VR, 60s (type test) |
|
Insulation voltage terminals to case |
1.75*VR 2s (type test)
1.75*VR 60s (routine test) |
| Dissipation factor tan d |
<=0.002 (50Hz) |
Climatic data
|
Climatic category |
25/085/21 to IEC 60068-1 |
|
Lower category Tmin |
-25 Centigrade |
|
Upper category Tmax |
85 Centigrade |
|
Damp heat test Ttest |
21 days |
|
