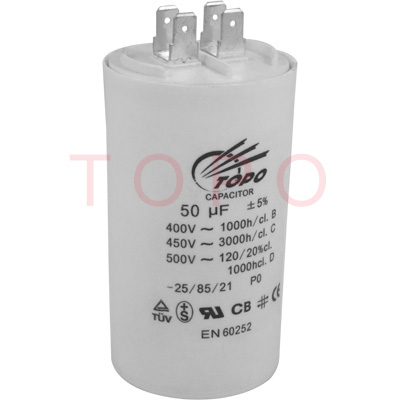

Construction
Dielectric: polypropylene film
Plastic & Round can
Dry type
Features
Self-heating properties
Low dissipation factor
P0 safety class to IEC 60252-1
High insulation resistance
Typical applications
For general sine wave applications,mainly as motor run capacitor
Terminals
Single Fast on
Double Fast on
Tinned Copper Wire
Twin Core Cable
Mounting parts (optional)
Threaded stud at bottom of can (M8, max.torque=5 Nm)
Fast fixation for mounting into a hole of f 8 mm
Technical data and specifications
|
Reference standards |
IEC 60252-1 |
|
Safety class according IEC 60252-1 |
P0 |
|
Life expectancy to IEC 60252-1 |
3,000 h( C)~10,000 h(B) |
|
Rated capacitance CR |
1 µF~120 µF |
|
Tolerance |
+/-5% |
|
Rated voltage VR |
110VAC~500VAC |
|
Rated frequency FR |
50/60Hz |
Maximum ratings
|
Maximum permissible votage Vmax |
1.1*VR (VR=Rated voltage) |
|
Maximum permissible current Imax |
1.3*IR (IR=Rated current) |
Test data
|
AC test voltage terminal to terminal VTT |
2*VR, 2s (routine test) |
|
2*VR, 60s (type test) |
|
Dissipation factor tan d |
<=0.002 (50Hz) |
Climatic data
|
Climatic category |
25/085/21 to IEC 60068-1 |
|
Lower category Tmin |
-25 Centigrade |
|
Upper category Tmax |
85 Centigrade |
|
Damp heat test Ttest |
21 days |
|
