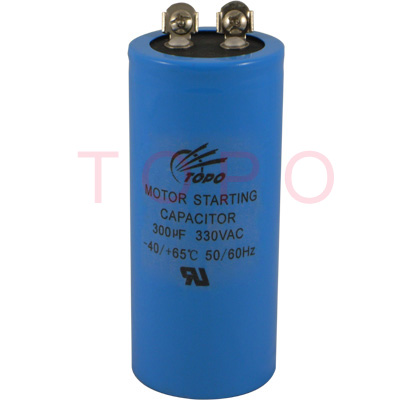

CD60 Motor Start Capacitor
Item No: TP-CD60-1
Request A Quote Now
Featureļ¼šScrew Fast On
Product Origin: China
Supply Ability: 300,000pcs/month
Date
Construction
Dielectric: aluminium foil & electrolyte paper
Aluminum can

Features
High class insulating, high strength, uneasy broken and good sealed
good performance, easily for use, reliable and long in service life as well as the high and stable quality

Typical applications
Suitable for use in single phase A.C. motors

Terminals
Screw Fast on
Single Fast on
Double Fast On

Technical data and specifications
Operating temperature range
40-55 Centigrade
Rated capacitance CR
21 µF~1600 µF
Tolerance
0 ~ +20%
Rated voltage VR
220VAC~330VAC
Rated frequency FR
50/60Hz
Dissipation factor tan d
tgd<=0.10,  tgd<=0.15 (20 Centigrade,100Hz)
Surge Voltage between lugs
Applying 1.2 times rated voltage for 2 seconds  non-broken down
Surge Voltage between lug and case
2000VAC  10 seconds  non-broken down

Load Life
55 Centigrade, 110~165VAC, 1S on, 59S off,
30000 times;
55 Centigrade, 220~30VAC, 1S on, 59S off, 15000 times;
Capacitance change rate: +-15% Initial tested value;
Dissipation Factor tgd: <=0.20
