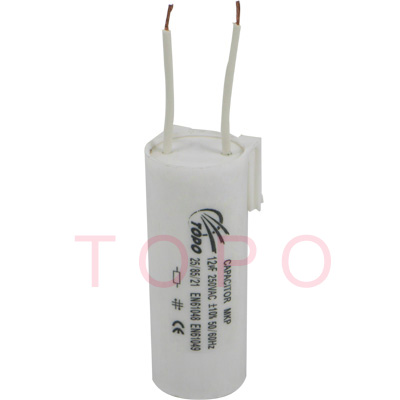

CBB80 Lighting Capacitor
Item No: TP-CBB80-3
Request A Quote Now
Featureļ¼šTinned Copper Wire
Product Origin: China
Supply Ability: 300,000pcs/month
Date
Construction
Dielectric: polypropylene film
Plastic & Aluminum can
Dry type

Features
Small volume,light,low lose,safety and trusy
It has the character of endure the high temperature.

Typical applications
For lamps and lanterns and so on.

Terminals
Push-in Terminals
Tinned Copper Wire

Mounting parts (optional)
Threaded stud at bottom of can (M8, max.torque=5 Nm)
Fast fixation for mounting into a hole of f 8 mm

Technical data and specifications
 Reference standards
 EN61048, EN61049
 Production Degree
 IP00
 Life expectancy to IEC 60252-1
 3,000 h( C)~10,000 h(B)
 Rated capacitance CR
 4 µF ~ 60 µF
 Tolerance
 +/-10%
 Rated voltage VR
 110VAC~630VAC
 Rated frequency FR
 50/60Hz

Test data
 Test voltage terminal to terminal VTT
 2*VR, 60s
 Test voltage terminal to terminal VTC
 2*KV, 60s
 Dissipation factor tan d
 <=5*10-4 (V=Vn T=+20 Centigrade)

Climatic data
 Climatic category
 25/085/21
 Lower category Tmin
 -25 Centigrade
 Upper category Tmax
 85 Centigrade
 Damp heat test Ttest
 21 days
