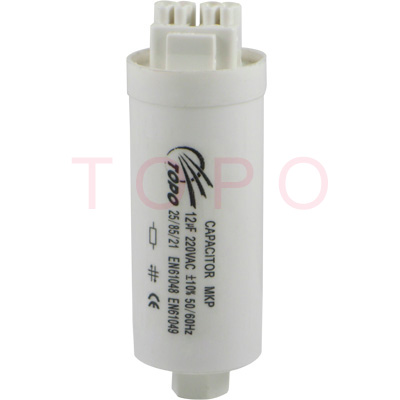

Construction
Dielectric: polypropylene film
Plastic & Aluminum can
Dry type
Features
Small volume,light,low lose,safety and trusy
It has the character of endure the high temperature.
Typical applications
For lamps and lanterns and so on.
Terminals
Push-in Terminals
Tinned Copper Wire
Mounting parts (optional)
Threaded stud at bottom of can (M8, max.torque=5 Nm)
Fast fixation for mounting into a hole of f 8 mm
Technical data and specifications
|
Reference standards |
EN61048, EN61049 |
|
Production Degree |
IP00 |
|
Life expectancy to IEC 60252-1 |
3,000 h( C)~10,000 h(B) |
|
Rated capacitance CR |
4 µF ~ 60 µF |
|
Tolerance |
+/-10% |
|
Rated voltage VR |
110VAC~630VAC |
|
Rated frequency FR |
50/60Hz |
Test data
|
Test voltage terminal to terminal VTT |
2*VR, 60s |
|
Test voltage terminal to terminal VTC |
2*KV, 60s |
|
Dissipation factor tan d |
<=5*10-4 (V=Vn T=+20 Centigrade) |
Climatic data
|
Climatic category |
25/085/21 |
|
Lower category Tmin |
-25 Centigrade |
|
Upper category Tmax |
85 Centigrade |
|
Damp heat test Ttest |
21 days |
|
