Products

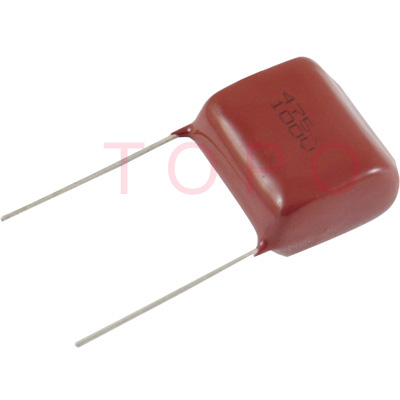

CL21 Capacitor
Item No: TP-CL21-1
Request A Quote Now
Featureļ¼šStraight wire leads, lead-free tinned
Product Origin: China
Supply Ability: 3,000,000pcs/month
Date
Construction
Dielectric:  polyester film, PET
Radial & Winding
Wound-film & Stacked-film technology

Features
Very small dimensions
Self-healing properties
High pulse strength

Typical applications
Energy saving lamps
ADSL

Terminals
Straight wire leads, lead-free tinned
Crimped wire leads, lead-free tinned

Climatic
Max. operating temperature: 105 Centigrade
Climatic category: 55/105/56

Delivery mode
Bulk

Technical data and specifications


Operating temperature range


Max. operating temperature Top,max 105 Centigrade
Upper category temperature Tmax 105 Centigrade
Lower category temperature Tmin 55 Centigrade
Rated temperaturer TR 85 Centigrade
Rated capacitance CR
0.00068 µF~22 µF
Tolerance
J(+-5%); K(+-10%)
Rated voltage VR
63VDC~1000VDC
DC test voltage
1.4*VR, 2s
Rated frequency FR
50/60Hz
Dissipation factor tan d
<=0.01 (1KHz)



Insulation resistance
CR<=0.33µF
VR<=100V J>=15000MΩ K>=3750MΩ
VR>100V J>=30000MΩ K>=7500 MΩ
CR>0.33µF
UR<=100V J>=5000s K>=1250s
UR>100V J>=10000s K>=2500s
